Power: 50W

Light Color: White Headlight+ RGB DRL

Color Temperature: 6000k+RGB

Voltage: DC12V-36V

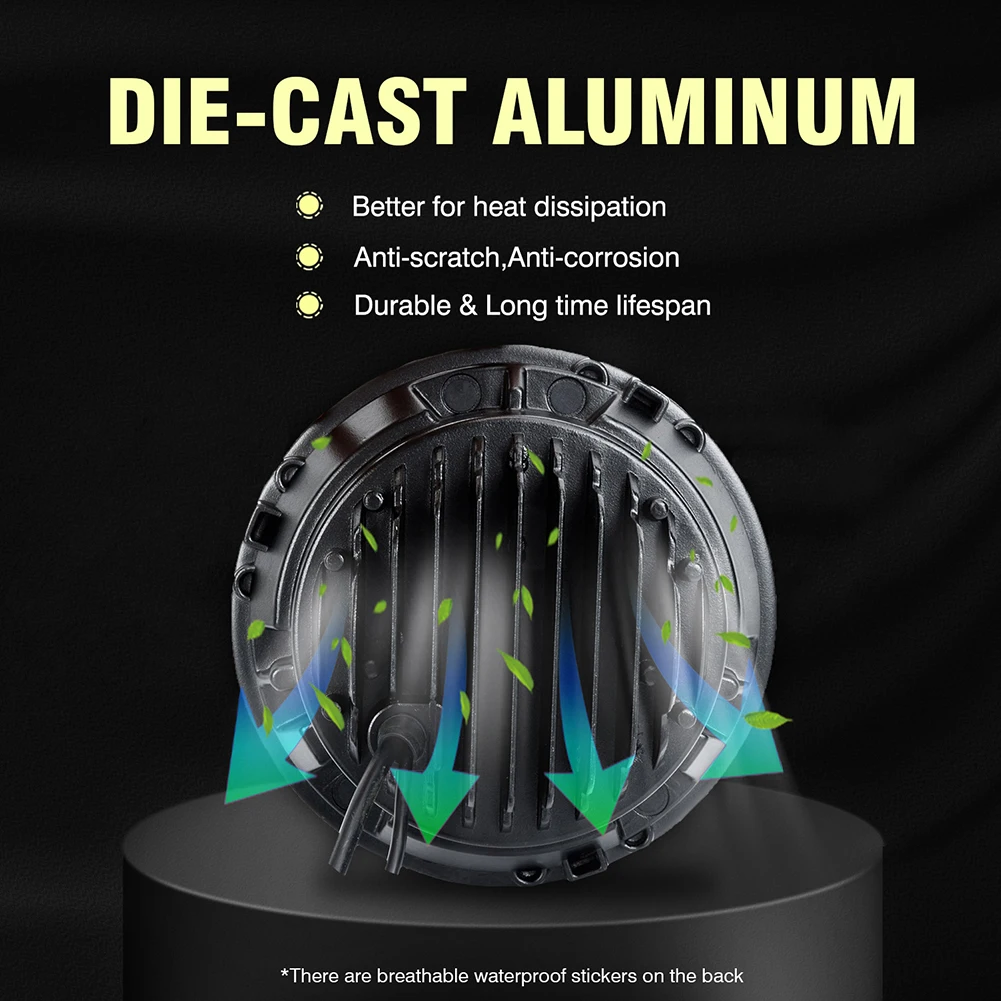

Material: Die-Cast Aluminum Housing and Durable Polycarbonate Lens

Lumens: 8000LM(High Beam) & 6000LM(Low Beam)

Dimension: 7 inch

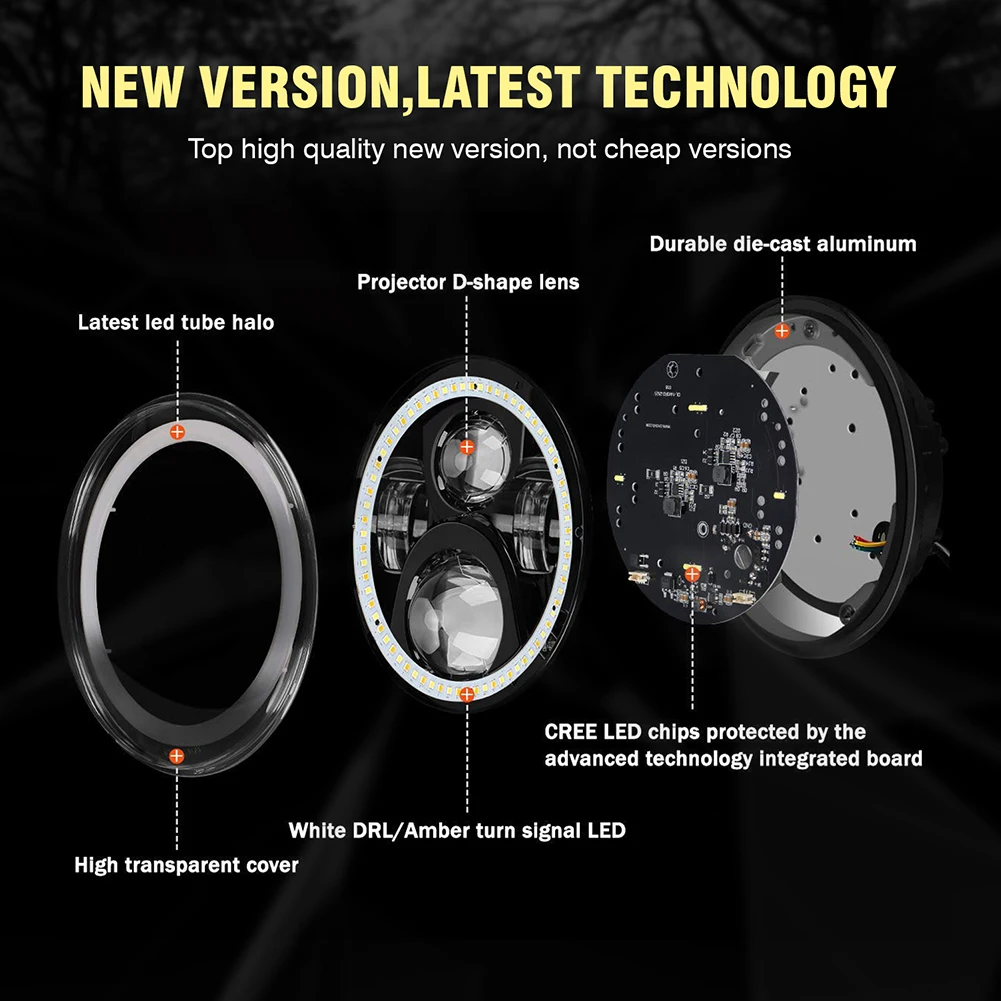

LED: CREE Chips

Life Span: 50000+ Hours

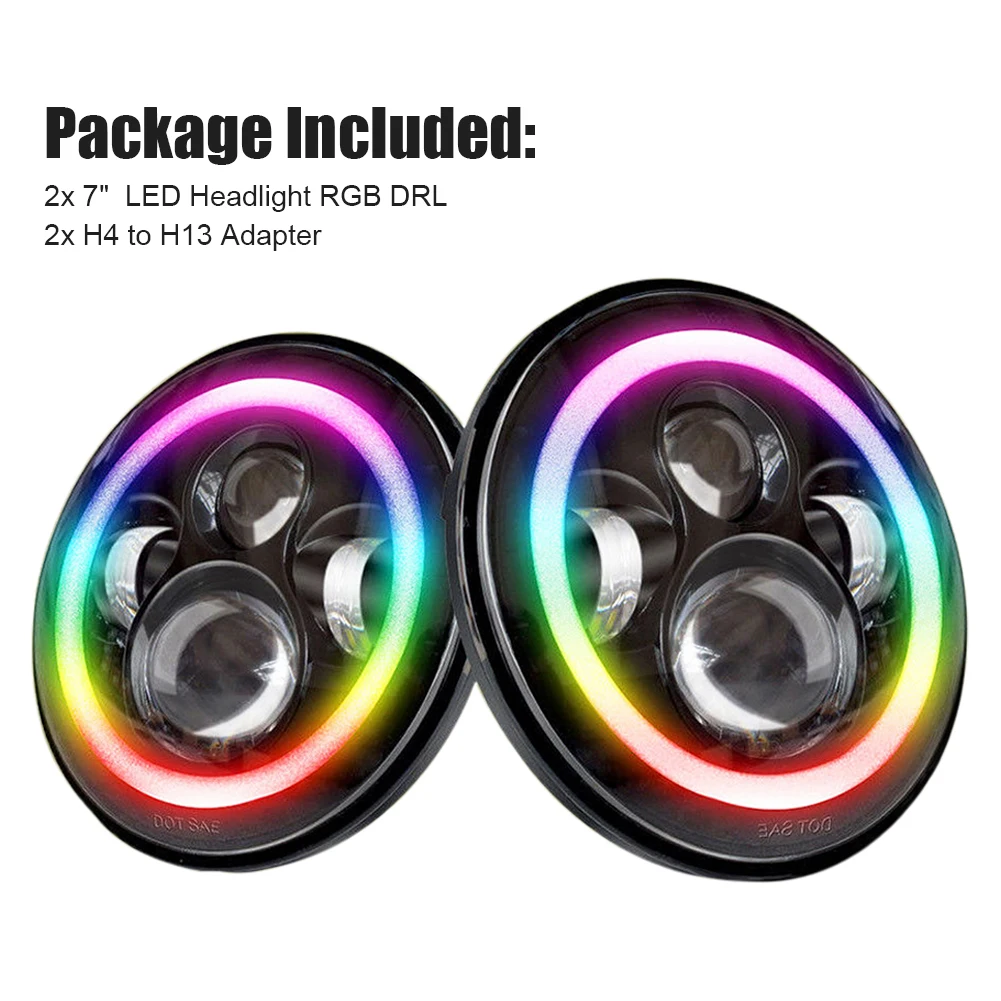

Package Included（changeable）:

2x 7'' LED Headlight RGB DRL

2x H4 to H13 Adapter

Package Included（Yellow white）:

2x 7'' LED Headlight （White light, yellow aperture）

Application:

For '76-'86 Jeep CJ-7

For '81-'85 Jeep CJ-8 Scrambler

For '97-'06 Jeep Wrangler TJ

For '04-'06 Jeep Wrangler LJ Unlimited

For '07-'17 Jeep Wrangler JK 2 Door

For '07-'17 Jeep Wrangler Unlimited JK 4 Door

EASY TO INSTALL

1.Remove the front grill and stock headlight,disconnect thewiring connector and use

the AAIWA headlight.

2.Connect the b- tooth wiring harness tothe headlight, andthen connect 2 headlights

with male and female connectors ofb- toothcontroller.

3.Plug in the H4 or H13 socket of LED headlightto car originalheadlight connector each side.

4.Connect the black wire to the negative ofcar battery, redwire connect to ACC in fuse box,

blue wire connect to the right side turn signal, white wire connect to the left side turn signal.

5. Carefully tuck all the wires into the headlightbucket area, fit the AAIWA headlights into position

and secure the headlights in.

6. Turn on the car power, connect the phoneb- tooth, and then can test all function.

Q & A:

Question1:
Tried to download the app its all in Chinese i cannot get this to work

Answer1:
Hi, please scan the QR code, or go to the AppStore, enter ''BLEDIM'' in the search, then download & install it. When you download the APP, the page maybe in Chinese if your phone is Android, but after you installed the APP, it will set in English itself automatically.

Question2:

Halo cannot work properly

Answer2:

Please DO NOT connect the positive of the halo(RED wire) to the battery directly. It should connect to the ACC+ in the fuse box. This way, the halo's power will totally cut off when the vehicle is off. So the halo will never turn on when the vehicle was off.

Question3:
Cannot get the B- tooth to stay connected

Answer3:The B- tooth should stay connected unless the power is off or the App is closed. You can try to close the controller box or try to change the controller box position to see how it works.
